Qubo embedding

In [ ]:

import torch

from qubosolver.config import DeviceType, EmbeddingConfig, SolverConfig
from qubosolver.solver import QUBOInstance, QuboSolver

import torch from qubosolver.config import DeviceType, EmbeddingConfig, SolverConfig from qubosolver.solver import QUBOInstance, QuboSolver

Embedding worklow¶

This tutorial aims to show small code snippet on how to use the different embedding methods (blade, custom, greedy) as well as how to parametrize the algorithms through the SolverConfig according to a given QUBO matrix.

In [ ]:

# import QUBO matrix manually
coefficients = torch.load("qubo_size_15.pt", weights_only=True)
instance = QUBOInstance(coefficients)

# import QUBO matrix manually coefficients = torch.load("qubo_size_15.pt", weights_only=True) instance = QUBOInstance(coefficients)

1. Define a SolverConfig to be passed to any solver

In [ ]:

config = SolverConfig(use_quantum=True)

config = SolverConfig(use_quantum=True)

For now, the SolverConfig contains parameters according to all available procedures (pre-post processing, embedding, pulse shaping). It has a default behavior that is compliant to the minimum requirements to run the workflow, as long as the given QUBO matrix fits with these default paremeters.

If one want to access to the default attributes, it is easily readable through the following:

In [ ]:

config.print_specs()

config.print_specs()

config_name: ''
use_quantum: True
backend_config: {'backend': <BackendType.QUTIP: 'qutip'>, 'username': None, 'password': None, 'project_id': None, 'device': None, 'dt': 10, 'wait': False}
n_calls: 20
embedding: {'embedding_method': <EmbedderType.GREEDY: 'greedy'>, 'layout_greedy_embedder': <LayoutType.TRIANGULAR: <class 'pulser.register.special_layouts.TriangularLatticeLayout'>>, 'steps_per_round_space_embedder': 150, 'starting_positions': None, 'dimensions': [2], 'traps': 1, 'spacing': 4.0, 'density': None, 'draw_steps': False, 'animation_save_path': None}
pulse_shaping: {'pulse_shaping_method': <PulseType.ADIABATIC: 'adiabatic'>, 'initial_omega_parameters': [5.0, 10.0, 5.0], 'initial_detuning_parameters': [-10.0, 0.0, 10.0], 're_execute_opt_pulse': False, 'custom_qubo_cost': None, 'custom_objective': None, 'callback_objective': None}
classical: {'classical_solver_type': 'cplex', 'cplex_maxtime': 600.0, 'cplex_log_path': 'solver.log'}
num_shots: 500
do_postprocessing: False
do_preprocessing: False
activate_trivial_solutions: True

2. Define a QuboSolver, by passing the instance and the defined configuration

In [ ]:

solver = QuboSolver(instance, config)

solver = QuboSolver(instance, config)

3. Call the embedding method according to the provided set of parameters defined by the SolverConfig.

In [ ]:

geometry = solver.embedding()

geometry = solver.embedding()

From the chosen embedding method, we get a set of two-dimensional coordinates that should be embeddable on the register:

In [ ]:

geometry.register.draw()

geometry.register.draw()

BLaDE parametrization¶

Following previous workflow, we can reiterate using a more fined parametrization of the SolverConfig for the blade embedding method.

Here is a code snippet of an arbitrary parametrization of BLaDE using multiple layers of $n$-dimension and a number of steps per round (i.e. number of iteration per layer):

In [ ]:

blade_settings = EmbeddingConfig(embedding_method="blade", blade_dimensions=[5 ,4, 3, 2], blade_steps_per_round=300)
blade_config = SolverConfig.from_kwargs(
    use_quantum=True,
    device=DeviceType.ANALOG_DEVICE,
    embedding=blade_settings,
)

solver = QuboSolver(instance, blade_config)
geometry = solver.embedding()
geometry.register.draw()

blade_settings = EmbeddingConfig(embedding_method="blade", blade_dimensions=[5 ,4, 3, 2], blade_steps_per_round=300) blade_config = SolverConfig.from_kwargs( use_quantum=True, device=DeviceType.ANALOG_DEVICE, embedding=blade_settings, ) solver = QuboSolver(instance, blade_config) geometry = solver.embedding() geometry.register.draw()

Greedy embedder parametrization¶

We do the same using the greedy embedding method, using a triangular lattice layout on a DigitalAnalogDevice with a number of traps at least equal to the number of variables in the QUBO:

In [ ]:

greedy_settings = EmbeddingConfig(embedding_method="greedy", layout_greedy_embedder="triangular", traps=instance.size)

greedy_config = SolverConfig.from_kwargs(
    use_quantum=True,
    device=DeviceType.ANALOG_DEVICE,
    embedding=greedy_settings,
)

solver = QuboSolver(instance, greedy_config)
geometry = solver.embedding()
geometry.register.draw()

greedy_settings = EmbeddingConfig(embedding_method="greedy", layout_greedy_embedder="triangular", traps=instance.size) greedy_config = SolverConfig.from_kwargs( use_quantum=True, device=DeviceType.ANALOG_DEVICE, embedding=greedy_settings, ) solver = QuboSolver(instance, greedy_config) geometry = solver.embedding() geometry.register.draw()

Custom embedder¶

If one desires to develop his own embedding method, a subclass of qubosolver.pipeline.embedder.BaseEmbedder should be implemented with a mandatory embed method.

The embed method def embed(self) -> qubosolver.pipeline.targets.Register specify how the problem is mapped into a register of qubits when running using a quantum device. Let us show a simple example where each variable $i$ is mapped into a qubit lying on a horizontal line (with coordinates $[i, 0]$).

In [ ]:

import typing
from qubosolver.pipeline.embedder import BaseEmbedder
from qubosolver.pipeline.targets import Register as TargetRegister
from qubosolver.config import SolverConfig
from pulser.register import Register as PulserRegister

class FixedEmbedder(BaseEmbedder):

    @typing.no_type_check
    def embed(self) -> TargetRegister:
        qubits = {f"q{i}": (i,0) for i in range(self.instance.coefficients.shape[0])}
        register = PulserRegister(qubits)
        return TargetRegister(self.config.backend_config.device, register)


custom_config = SolverConfig.from_kwargs(
    use_quantum=True,
    embedding_method=FixedEmbedder,
)
solver = QuboSolver(instance, custom_config)
geometry = solver.embedding()
geometry.register.draw()

import typing from qubosolver.pipeline.embedder import BaseEmbedder from qubosolver.pipeline.targets import Register as TargetRegister from qubosolver.config import SolverConfig from pulser.register import Register as PulserRegister class FixedEmbedder(BaseEmbedder): @typing.no_type_check def embed(self) -> TargetRegister: qubits = {f"q{i}": (i,0) for i in range(self.instance.coefficients.shape[0])} register = PulserRegister(qubits) return TargetRegister(self.config.backend_config.device, register) custom_config = SolverConfig.from_kwargs( use_quantum=True, embedding_method=FixedEmbedder, ) solver = QuboSolver(instance, custom_config) geometry = solver.embedding() geometry.register.draw()

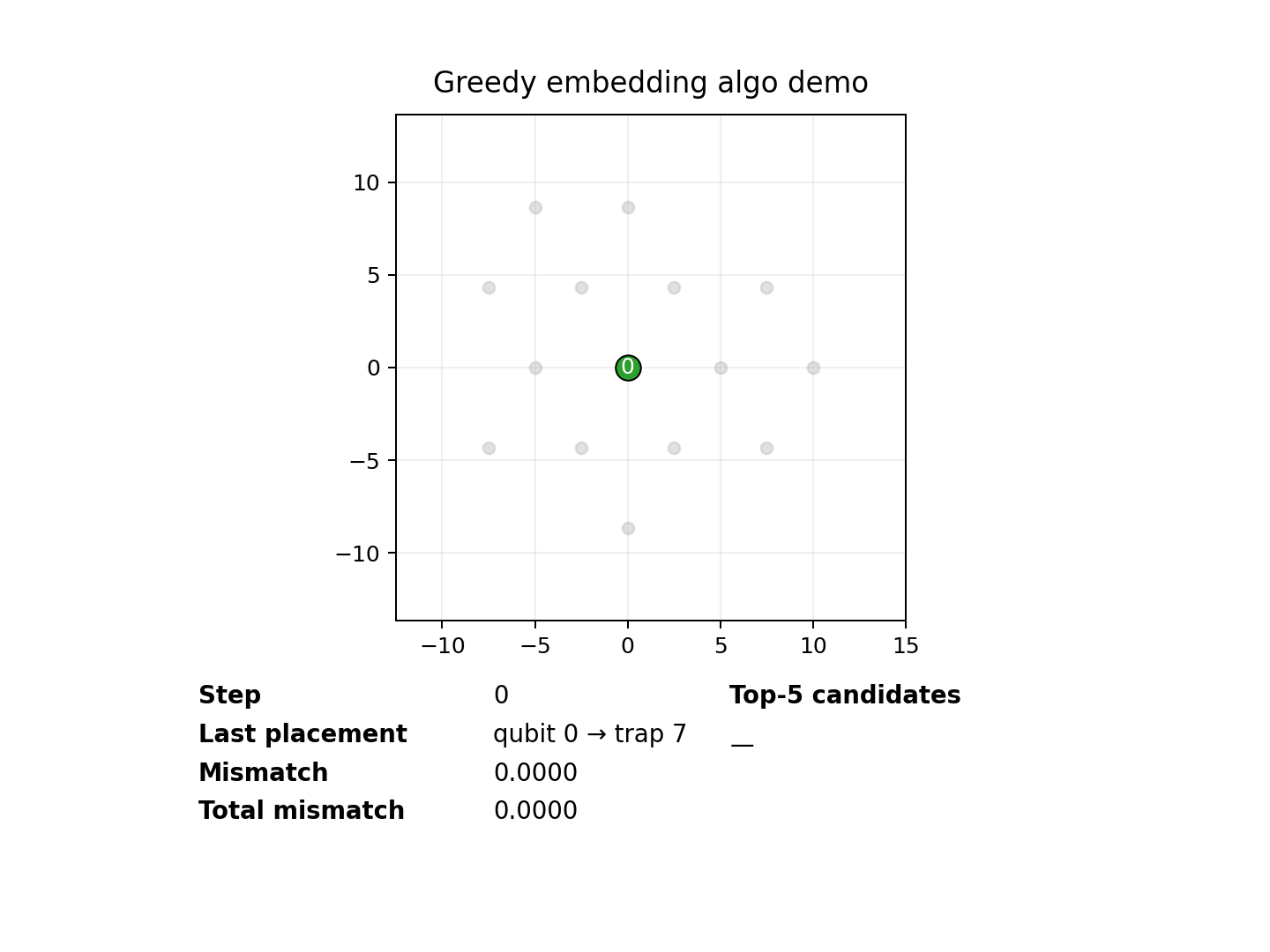

Greedy algorithm - Vizualisation¶

In [ ]:

from matplotlib import rc
rc("animation", html="jshtml")  # ensure inline animations

from importlib import reload


from qubosolver.solver import QUBOInstance, QuboSolver
from qubosolver.config import SolverConfig, EmbeddingConfig, BackendConfig
from qoolqit._solvers.types import DeviceType



from matplotlib import rc rc("animation", html="jshtml") # ensure inline animations from importlib import reload from qubosolver.solver import QUBOInstance, QuboSolver from qubosolver.config import SolverConfig, EmbeddingConfig, BackendConfig from qoolqit._solvers.types import DeviceType

In [ ]:

import torch

Q = torch.tensor([
    [-4.0, 1.0, 2.0, 1.5, 2.3, 0.9, 1.8, 2.7, 1.2],
    [ 1.0,-3.2, 1.7, 2.1, 0.8, 1.9, 2.2, 1.1, 1.6],
    [ 2.0, 1.7,-5.1, 0.7, 2.5, 1.3, 2.6, 1.4, 2.0],
    [ 1.5, 2.1, 0.7,-2.7, 1.2, 2.4, 0.6, 1.8, 2.1],
    [ 2.3, 0.8, 2.5, 1.2,-6.3, 1.0, 1.7, 2.8, 1.5],
    [ 0.9, 1.9, 1.3, 2.4, 1.0,-4.5, 2.3, 1.6, 0.9],
    [ 1.8, 2.2, 2.6, 0.6, 1.7, 2.3,-3.8, 1.2, 2.2],
    [ 2.7, 1.1, 1.4, 1.8, 2.8, 1.6, 1.2,-5.9, 1.4],
    [ 1.2, 1.6, 2.0, 2.1, 1.5, 0.9, 2.2, 1.4,-2.4],
], dtype=torch.float32)

instance = QUBOInstance(Q)

greedy_settings = EmbeddingConfig(
    embedding_method="greedy",
    layout_greedy_embedder="triangular",  # or "square"
    traps=instance.size + 6,
    spacing=5.0,
    draw_steps=True,                         # ← single toggle
    animation_save_path="greedy_demo.mp4",   # ← optional file export
)

backend = BackendConfig(device=DeviceType.ANALOG_DEVICE)

cfg = SolverConfig.from_kwargs(
    use_quantum=True,
    embedding=greedy_settings,
    device=backend.device,
)

solver = QuboSolver(instance, cfg)
geometry = solver.embedding()     # → inline animation + optional mp4

import torch Q = torch.tensor([ [-4.0, 1.0, 2.0, 1.5, 2.3, 0.9, 1.8, 2.7, 1.2], [ 1.0,-3.2, 1.7, 2.1, 0.8, 1.9, 2.2, 1.1, 1.6], [ 2.0, 1.7,-5.1, 0.7, 2.5, 1.3, 2.6, 1.4, 2.0], [ 1.5, 2.1, 0.7,-2.7, 1.2, 2.4, 0.6, 1.8, 2.1], [ 2.3, 0.8, 2.5, 1.2,-6.3, 1.0, 1.7, 2.8, 1.5], [ 0.9, 1.9, 1.3, 2.4, 1.0,-4.5, 2.3, 1.6, 0.9], [ 1.8, 2.2, 2.6, 0.6, 1.7, 2.3,-3.8, 1.2, 2.2], [ 2.7, 1.1, 1.4, 1.8, 2.8, 1.6, 1.2,-5.9, 1.4], [ 1.2, 1.6, 2.0, 2.1, 1.5, 0.9, 2.2, 1.4,-2.4], ], dtype=torch.float32) instance = QUBOInstance(Q) greedy_settings = EmbeddingConfig( embedding_method="greedy", layout_greedy_embedder="triangular", # or "square" traps=instance.size + 6, spacing=5.0, draw_steps=True, # ← single toggle animation_save_path="greedy_demo.mp4", # ← optional file export ) backend = BackendConfig(device=DeviceType.ANALOG_DEVICE) cfg = SolverConfig.from_kwargs( use_quantum=True, embedding=greedy_settings, device=backend.device, ) solver = QuboSolver(instance, cfg) geometry = solver.embedding() # → inline animation + optional mp4

[anim] Save failed: ffmpeg is not available in PATH. Install ffmpeg or export GIF instead.
Animation.save using <class 'matplotlib.animation.HTMLWriter'>

Once Loop Reflect
